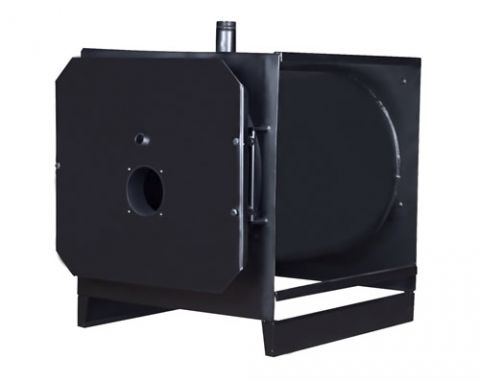

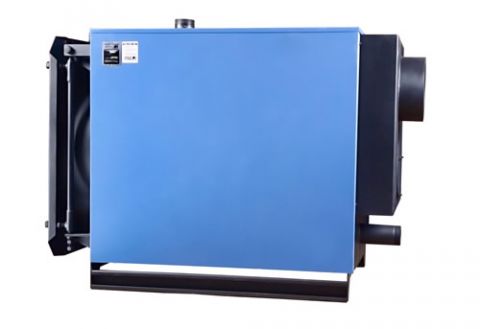

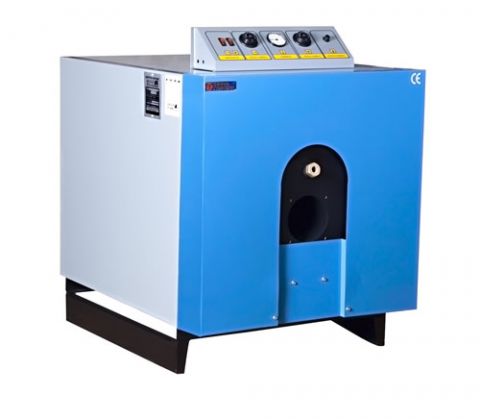

A-series

Our best model



A-series is our company’s best model. All types of this series, subjected to the Directive 92/42 ECC (PfA 335/16-8-1993) concerning the efficiency requirements of boilers, are certificated.

The main characteristics of this series are:

  • Steel sheet ST 37-2
  • Seamless fire tubes ST 37
  • The sheet welding, which is made according to MIG-welding method, achieves stable quality of welding and high resistance and tolerance to possible deformations of the sheets due to temperature fluctuations.
  • The insulation of the body boiler with glass wool of high density, 80 mm thick and cover of aluminum foil.
  • Electrostatic, tempered panels which cover the whole boiler.
  • Completely attached chimney for better maintenance of the boiler.
  • For the boilers of medium and high power (over 460 KW), the closed position of the boiler’s door can be fixed with a special hinge (our company’s patent).



Download the datasheet



» Technical Variations:

ΛΕΒΗΤΕΣ ΠΕΤΡΕΛΑΙΟΥ ΣΕΙΡΑ Α
ΛΕΒΗΤΕΣ ΑΕΡΙΟΥ ΣΕΙΡΑ Α
ΤΥΠΟΣ ΙΣΧΥΣ
ΤΥΠΟΣ ΙΣΧΥΣ

kw kcal

kw kcal
Α-001-30 35 30,000
Α-001-30-Α 35 30,000
Α-01-40 47 40,000
Α-01-40-Α 47 40,000
Α-01-50 58 50,000
Α-01-50-Α 58 50,000
Α-002-60 70 60,000
Α-002-60-Α 70 60,000
Α-02-75 87 75,000
Α-02-75-Α 87 75,000
Α-02-90 105 90,000
Α-02-90-Α 105 90,000
Α-02-100 116 100,000
Α-02-100-Α 116 100,000
Α-125 145 125,000
Α-125-Α 145 125,000
Α-150 175 150,000
Α-150-Α 175 150,000
Α-175 204 175,000
Α-175-Α 204 175,000
Α-200 233 200,000
Α-200-Α 233 200,000
Α-250 291 250,000
Α-250-Α 291 250,000
Α-300 350 300,000
Α-300-Α 350 300,000
Α-350 407 350,000
Α-350-Α 407 350,000
Α-400 465 400,000
Α-400-Α 465 400,000
Α-450 523 450,000
Α-450-Α 523 450,000
Α-500 581 500,000
Α-500-Α 581 500,000
Α-600 698 600,000
Α-600-Α 698 600,000
Α-700 814 700,000
Α-700-Α 814 700,000
Α-800 930 800,000
Α-800-Α 930 800,000
Α-900 1,046 900,000
Α-900-Α 1,046 900,000
Α-1000 1,163 1,000,000
Α-1000-Α 1,163 1,000,000
Α-1300 1,512 1,300,000
Α-1300-Α 1,512 1,300,000
Α-1600 1,860 1,600,000
Α-1600-Α 1,860 1,600,000
Α-2000 2,326 2,000,000
Α-2000-Α 2,326 2,000,000
Α-3000 3,489 3,000,000
Α-3000-Α 3,489 3,000,000
